Silicone Fluoro 45 Degree Wrapped Hose

Silicone Wrapped 45 Degree Elbow is a high-performance connector hose designed for use with fuel, oil, and petroleum-based products in motorsport, automotive, and industrial environments. Manufactured by AutoSiliconeHoses, this elbow features a fluorosilicone inner liner for chemical resistance, fine mesh polyester reinforcement for strength, and a wrapped VMQ silicone outer layer for enhanced heat and abrasion resistance. The 45° bend with 150 mm leg length allows smooth routing in compact or angled installations while maintaining flexibility and durability. With an operating temperature range of -60°C to +180°C (peak +200°C) and built to SAEJ20R6 standards, this wrapped elbow delivers long-term reliability under demanding service conditions.

Key Features:

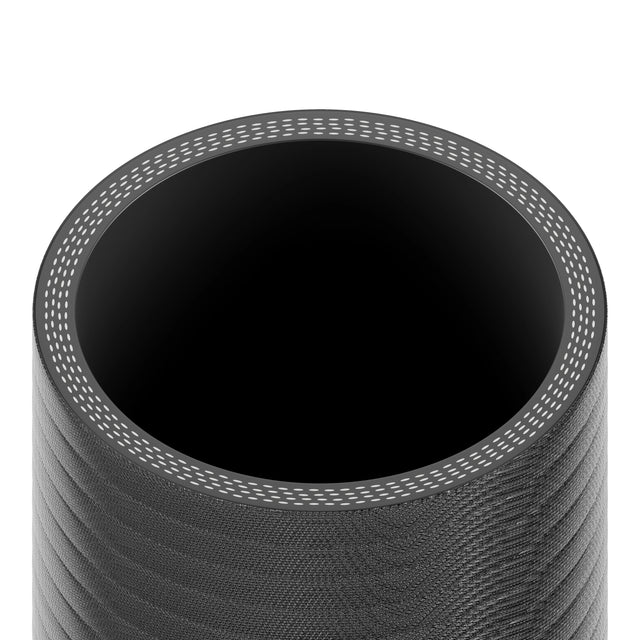

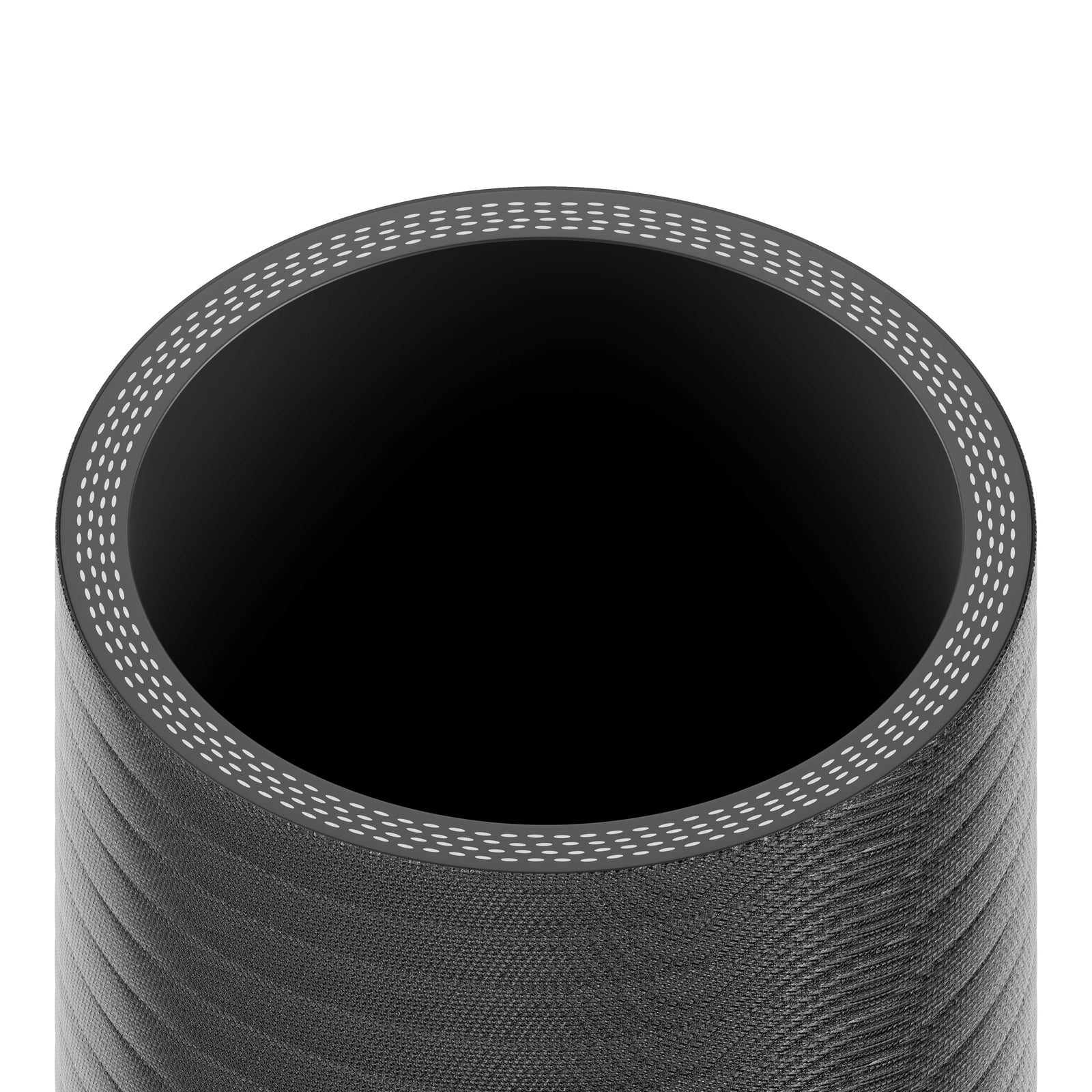

• Material: Fluorosilicone inner liner, fine mesh polyester reinforcement, wrapped VMQ silicone outer layer.

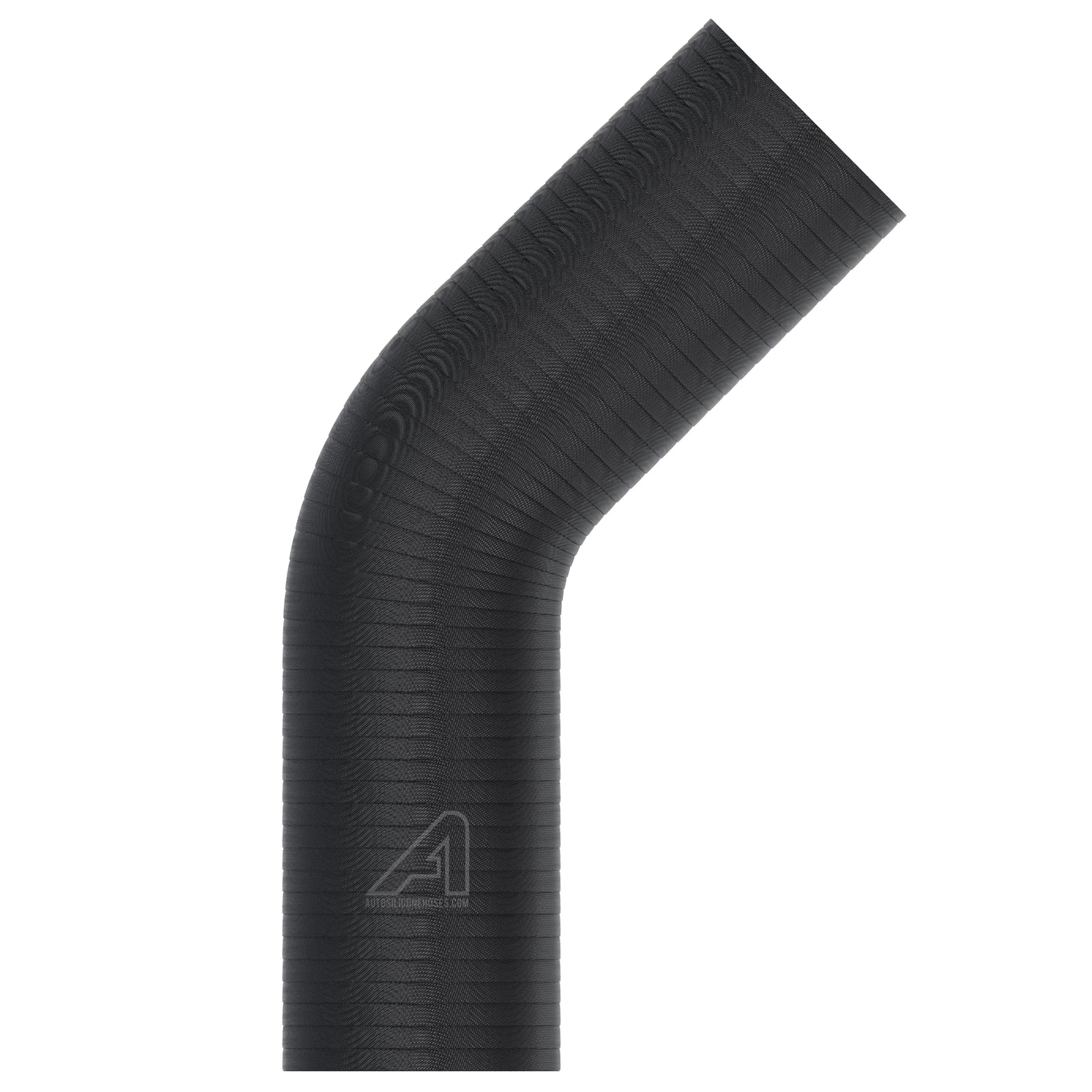

• Angle: 45° elbow with 150 mm leg length.

• Internal Diameter Range: 6.5 mm to 102 mm.

• Wall Thickness: 4.5 mm to 5.5 mm depending on size.

• Working Pressure: 2.8 bar to 12.33 bar (varies by size).

• Burst Pressure: 8.5 bar to 37 bar minimum.

• Bending Radius: 16 mm (6.5 mm ID) to 70 mm (102 mm ID).

• Temperature Range: -60°C to +180°C continuous; +200°C peak.

• Standard: SAEJ20R6 compliant.

• Brand: AutoSiliconeHoses performance silicone.

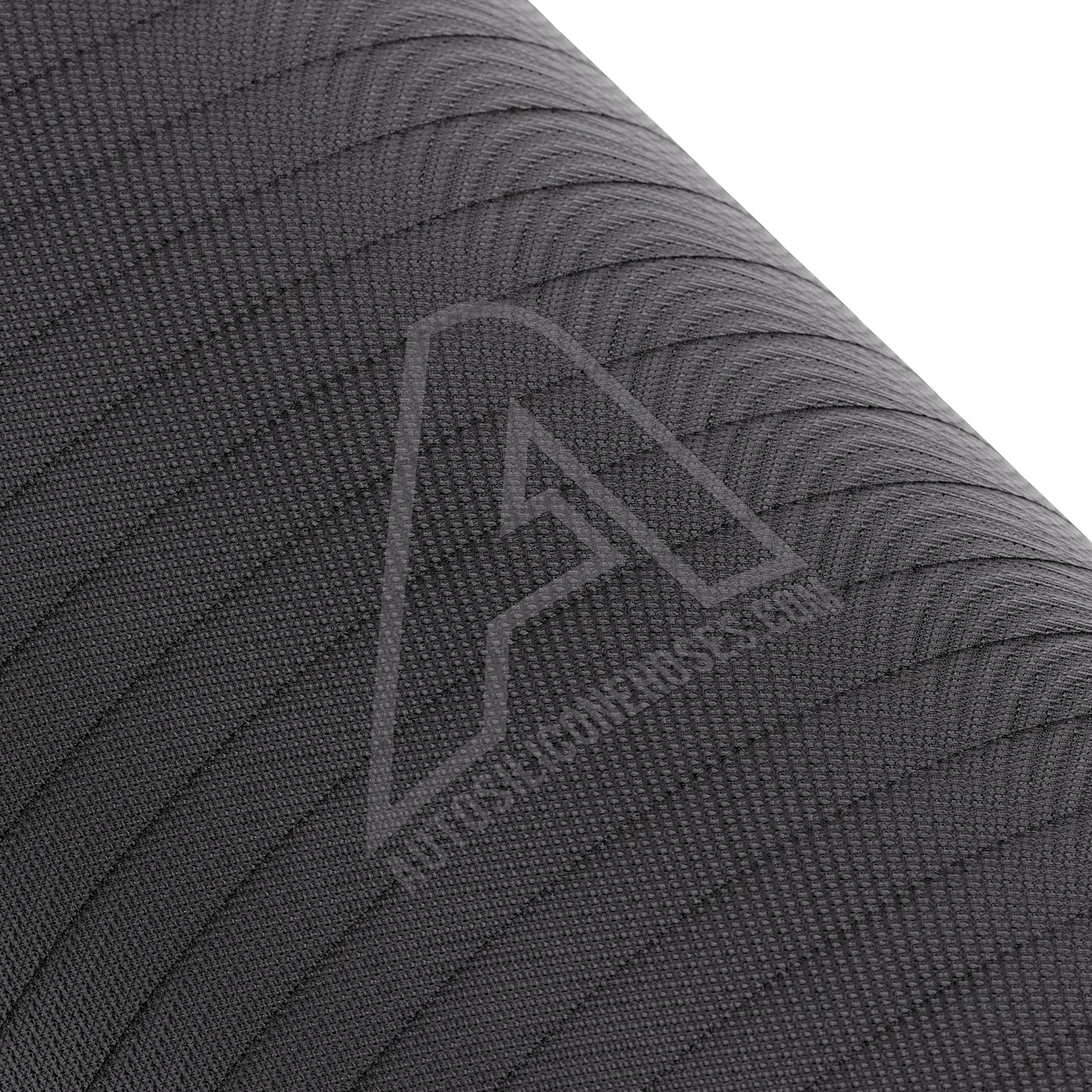

The Silicone Wrapped 45 Degree Elbow provides superior performance and resilience in environments exposed to fuels, oils, and high temperatures. Its fluorosilicone lining ensures compatibility with hydrocarbons, while the polyester braiding delivers strength and stability under boost or vacuum conditions. The wrapped VMQ silicone exterior adds abrasion resistance and a classic cloth finish, making it suitable for both modern motorsport and vintage vehicle applications. The angled design simplifies installation where space is limited, reducing stress on pipework and providing a clean, professional fit.

Applications include fuel and oil system routing, breather and catch can lines, performance upgrades, and industrial petroleum handling. Distributed under the AutoSiliconeHoses brand, the Silicone Wrapped 45 Degree Elbow is engineered for professionals, tuners, and enthusiasts seeking heat-resistant, chemically compatible, and flexible silicone components for demanding systems.
