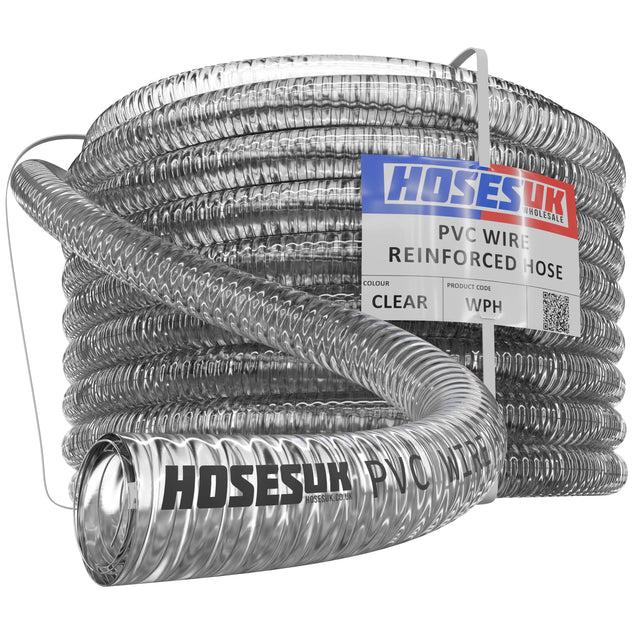

PVC Wire Reinforced Hose

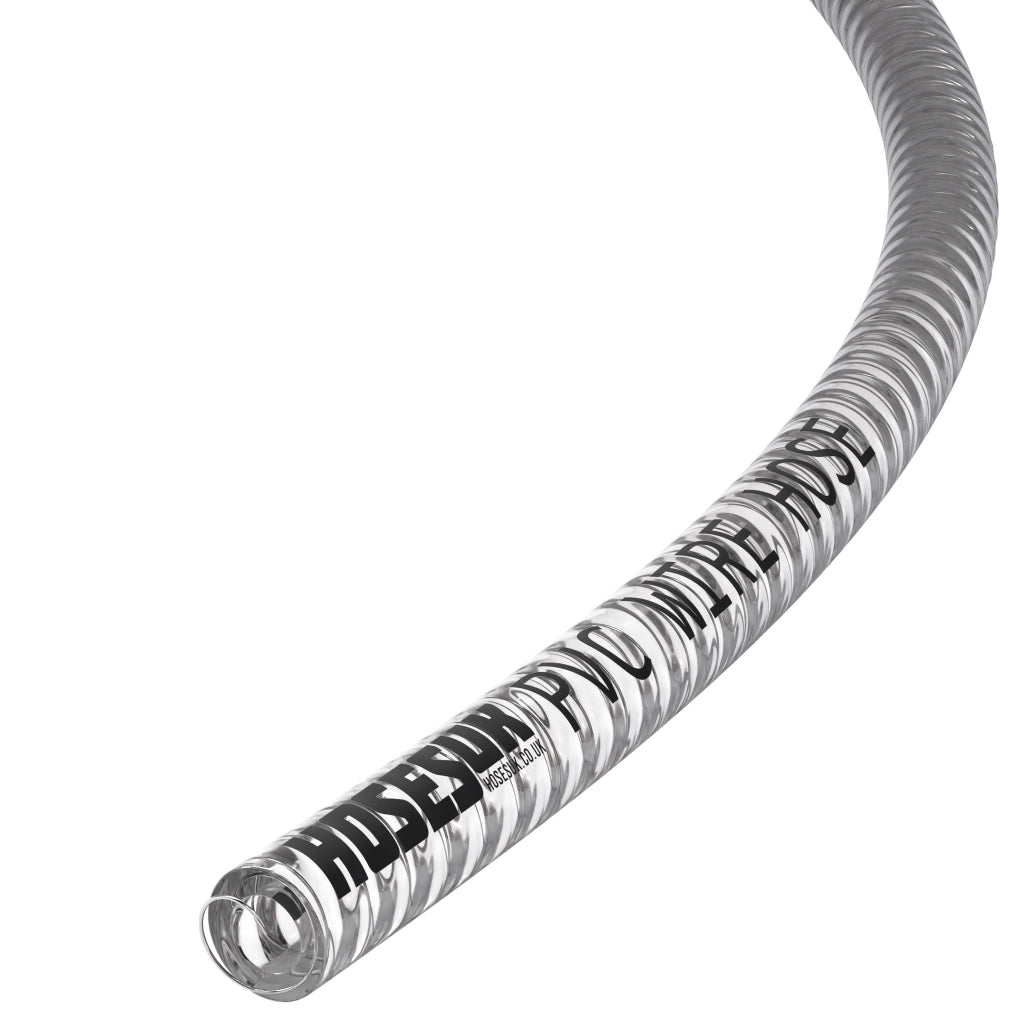

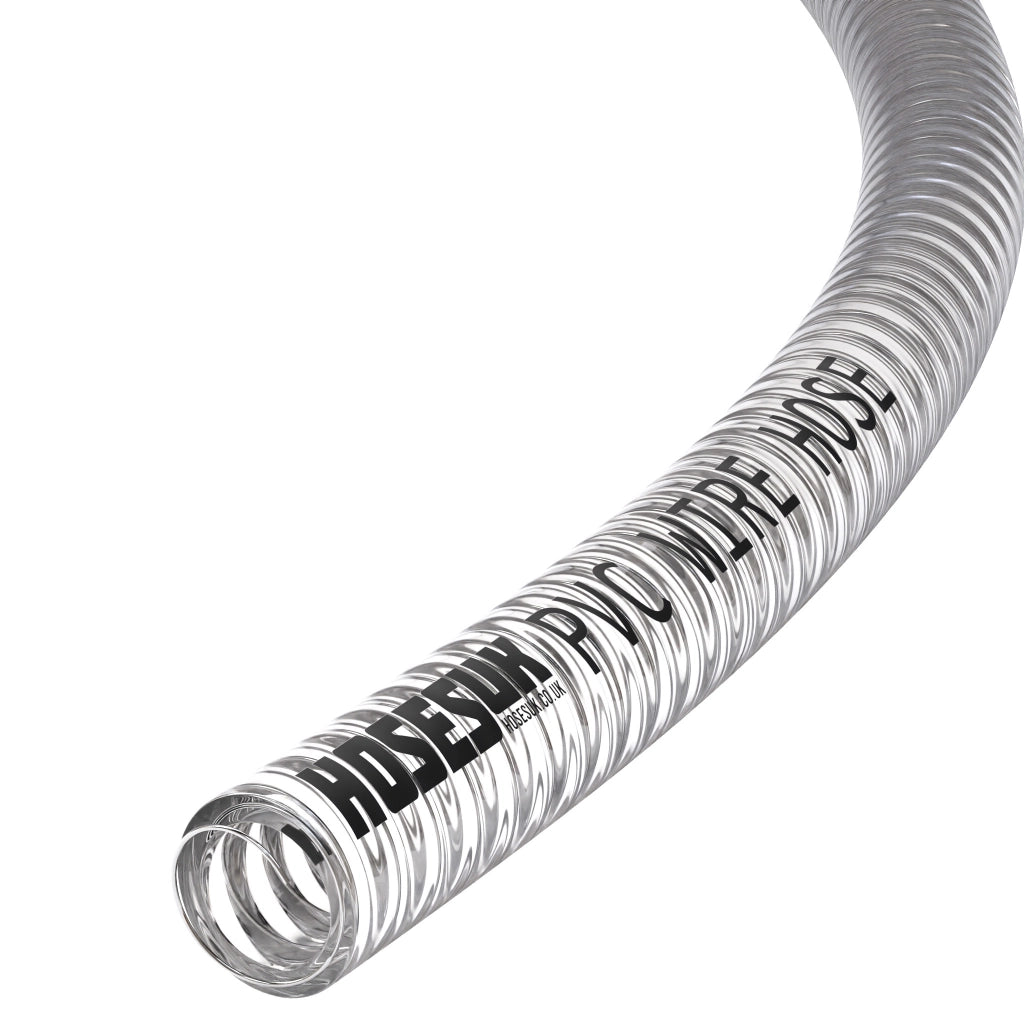

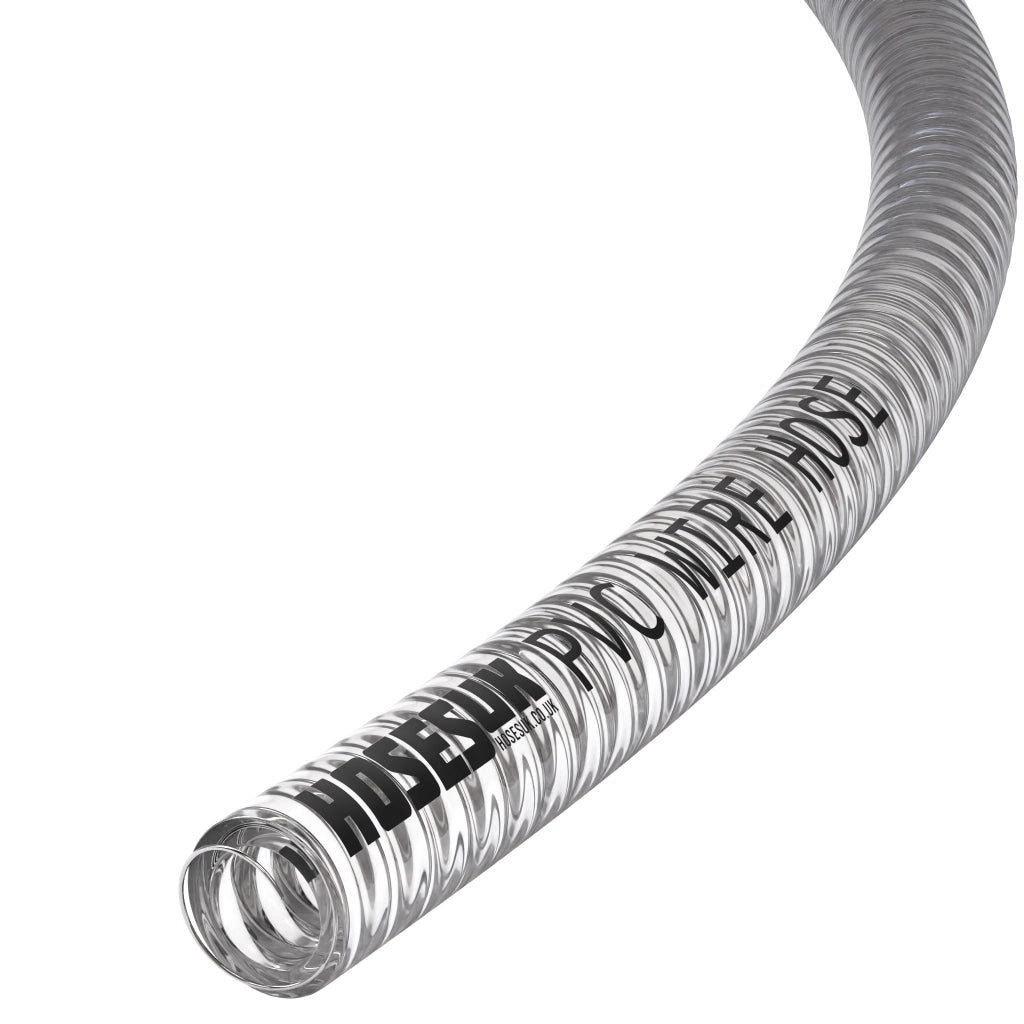

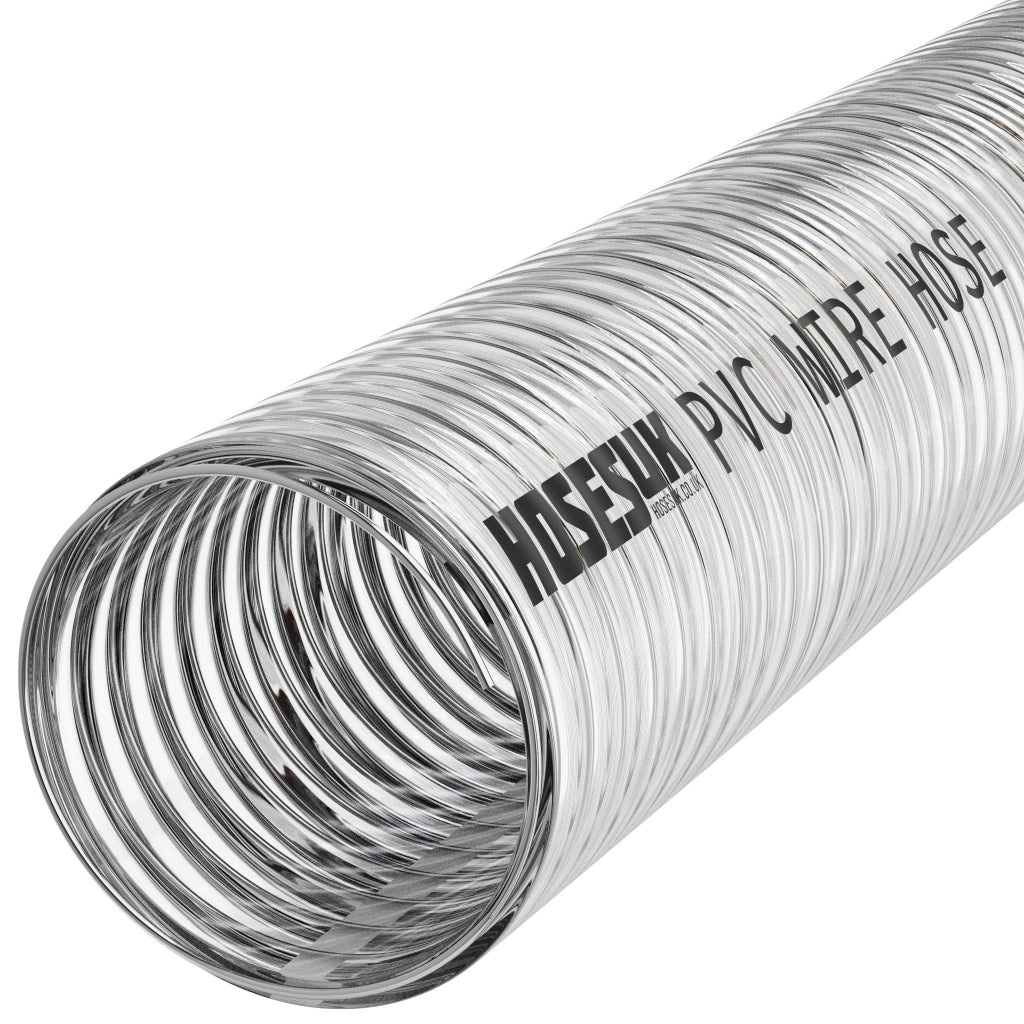

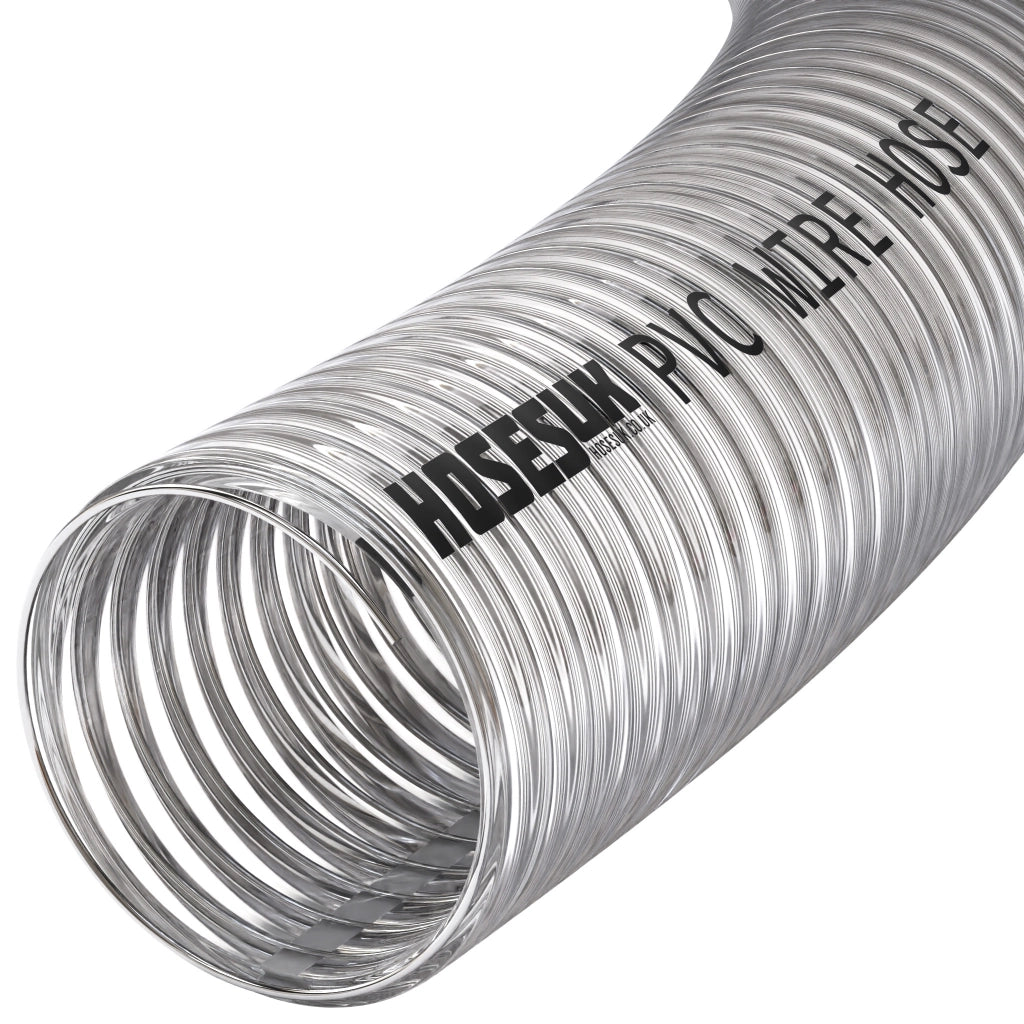

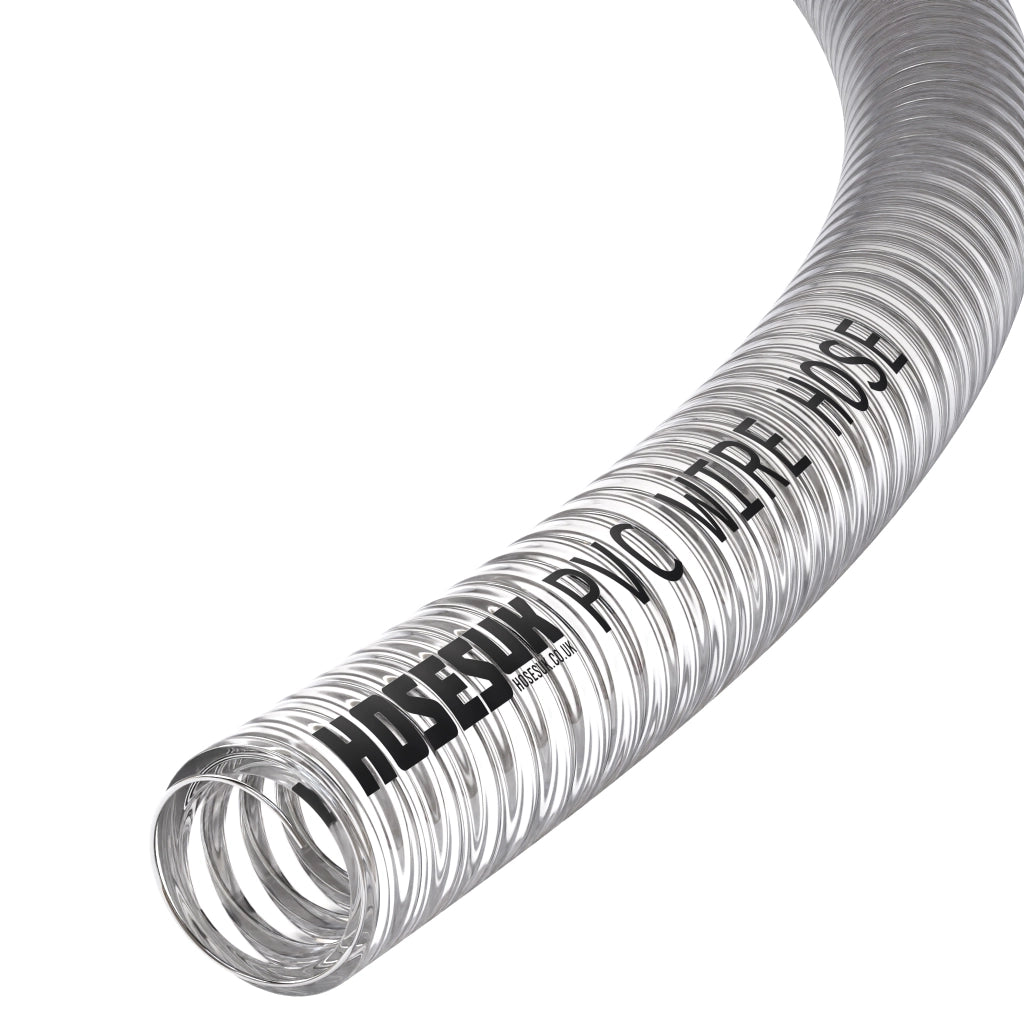

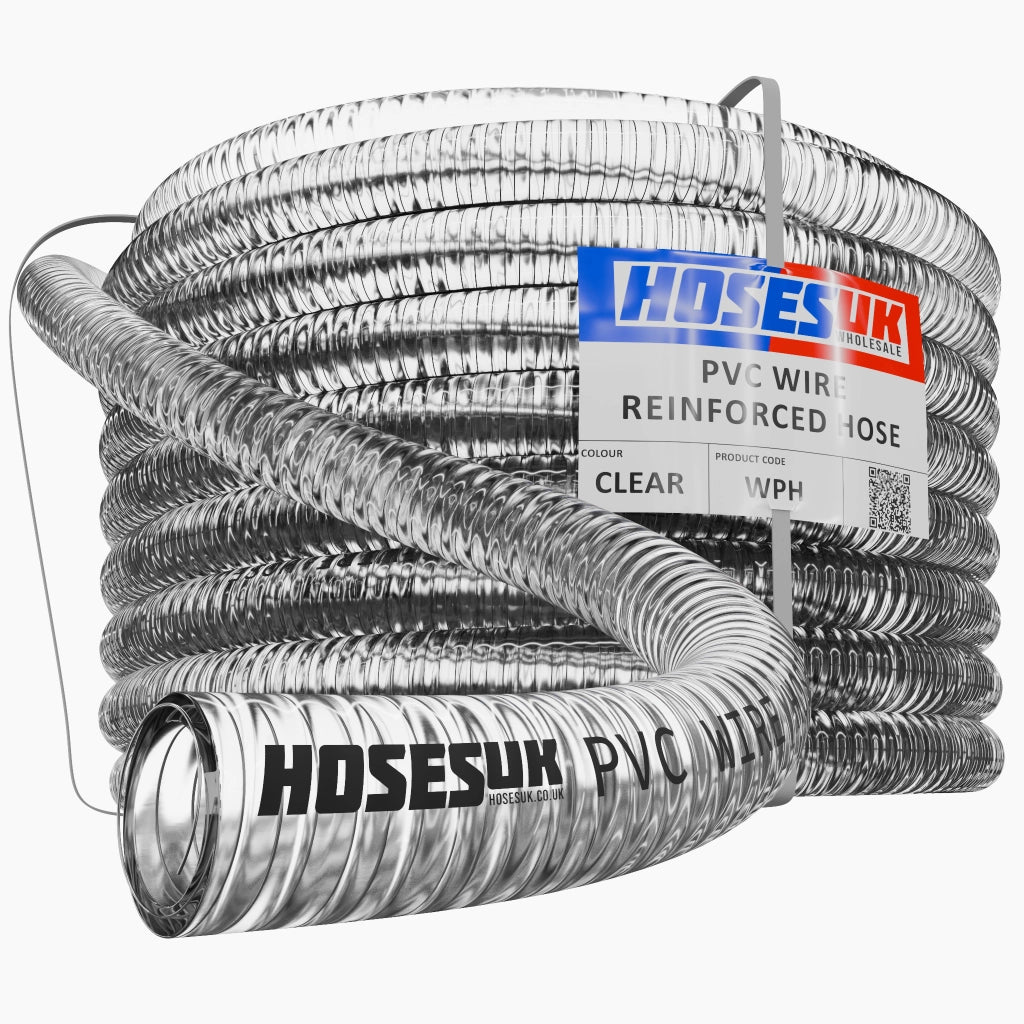

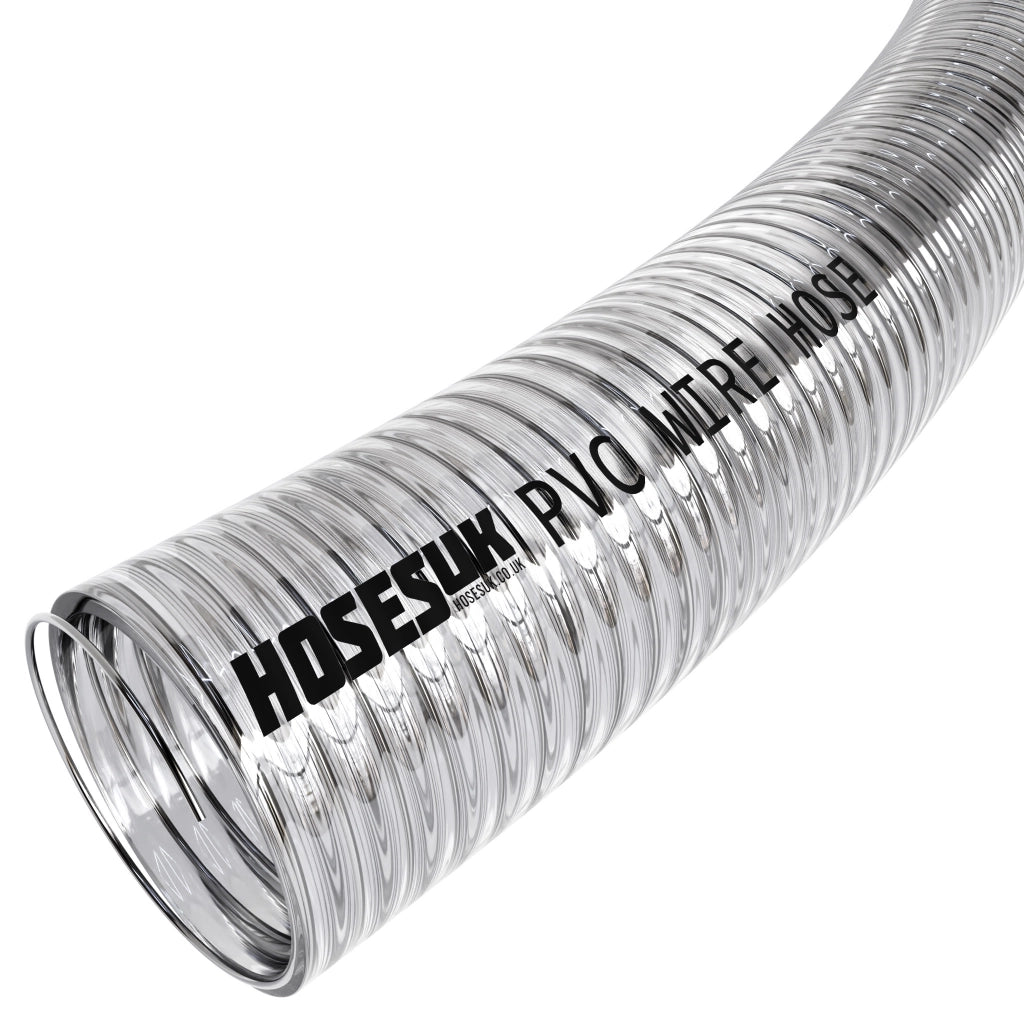

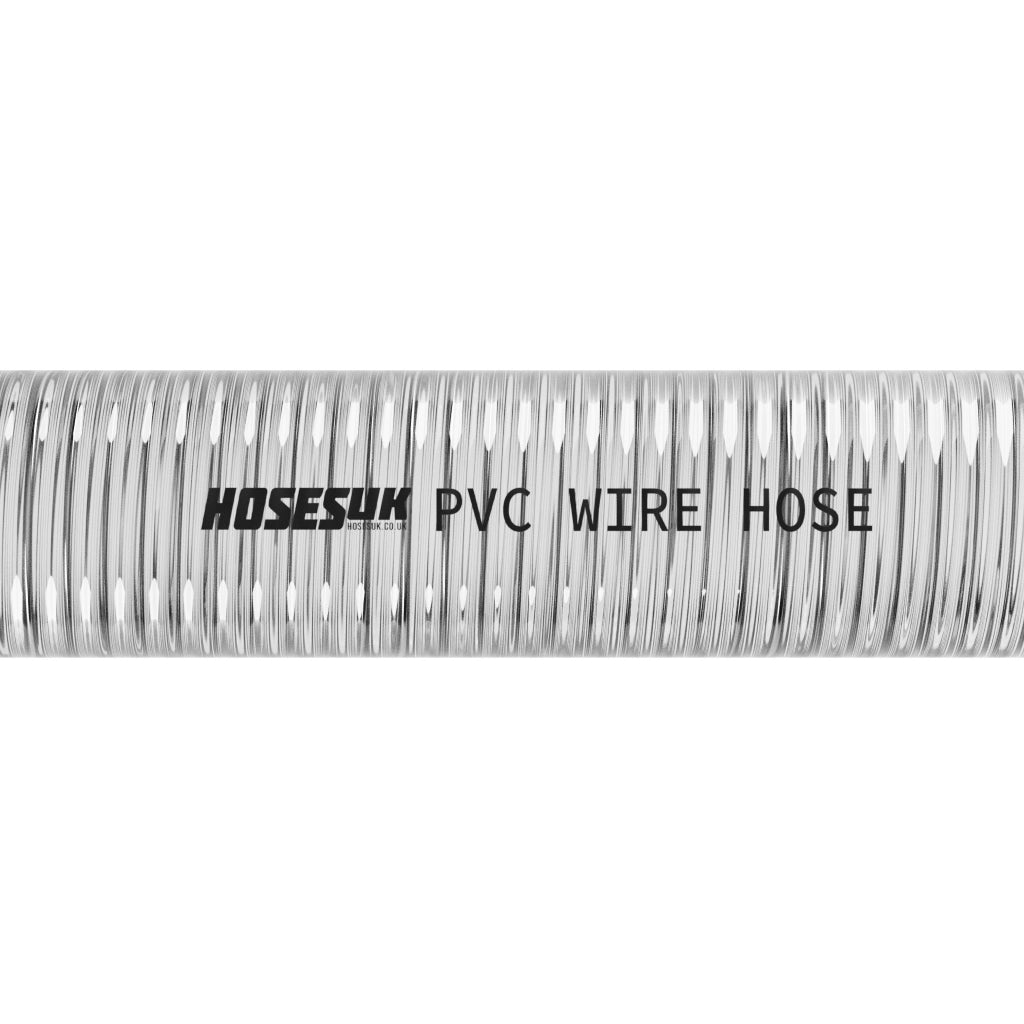

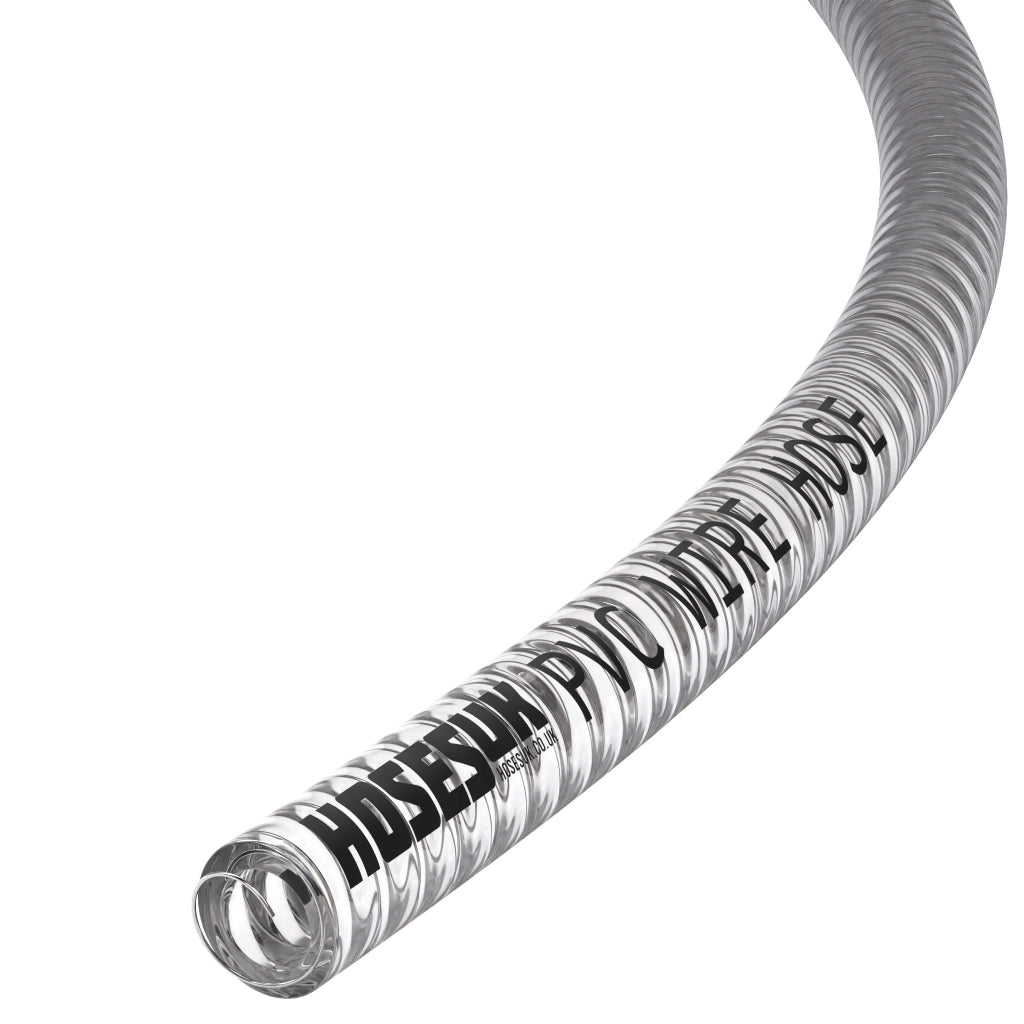

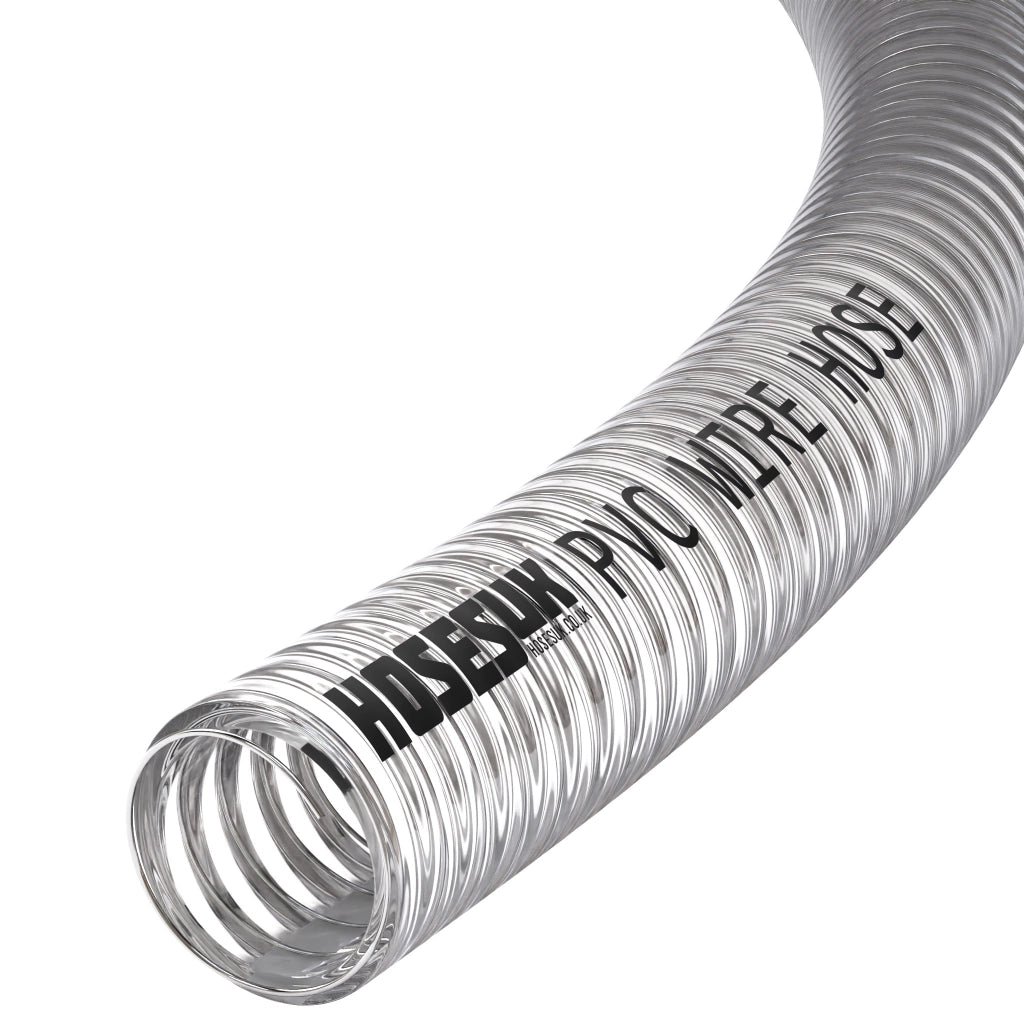

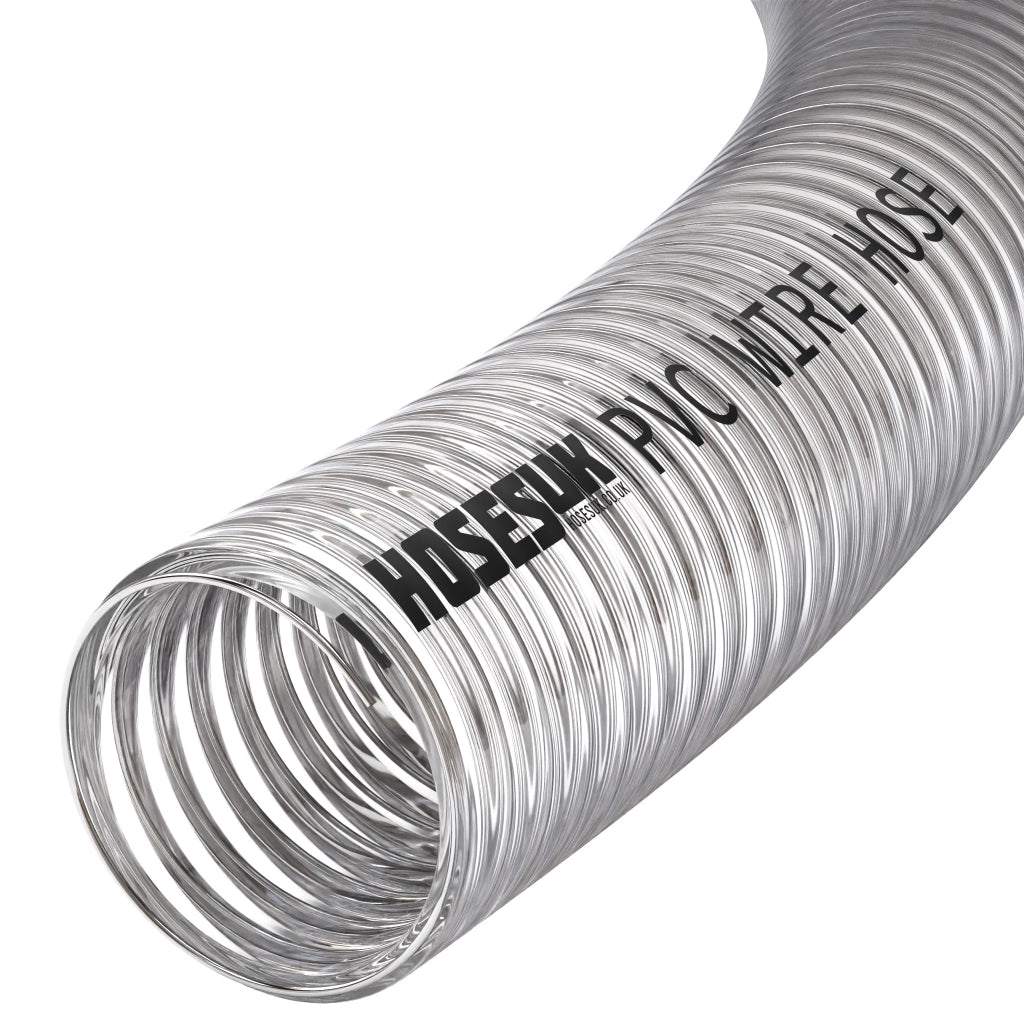

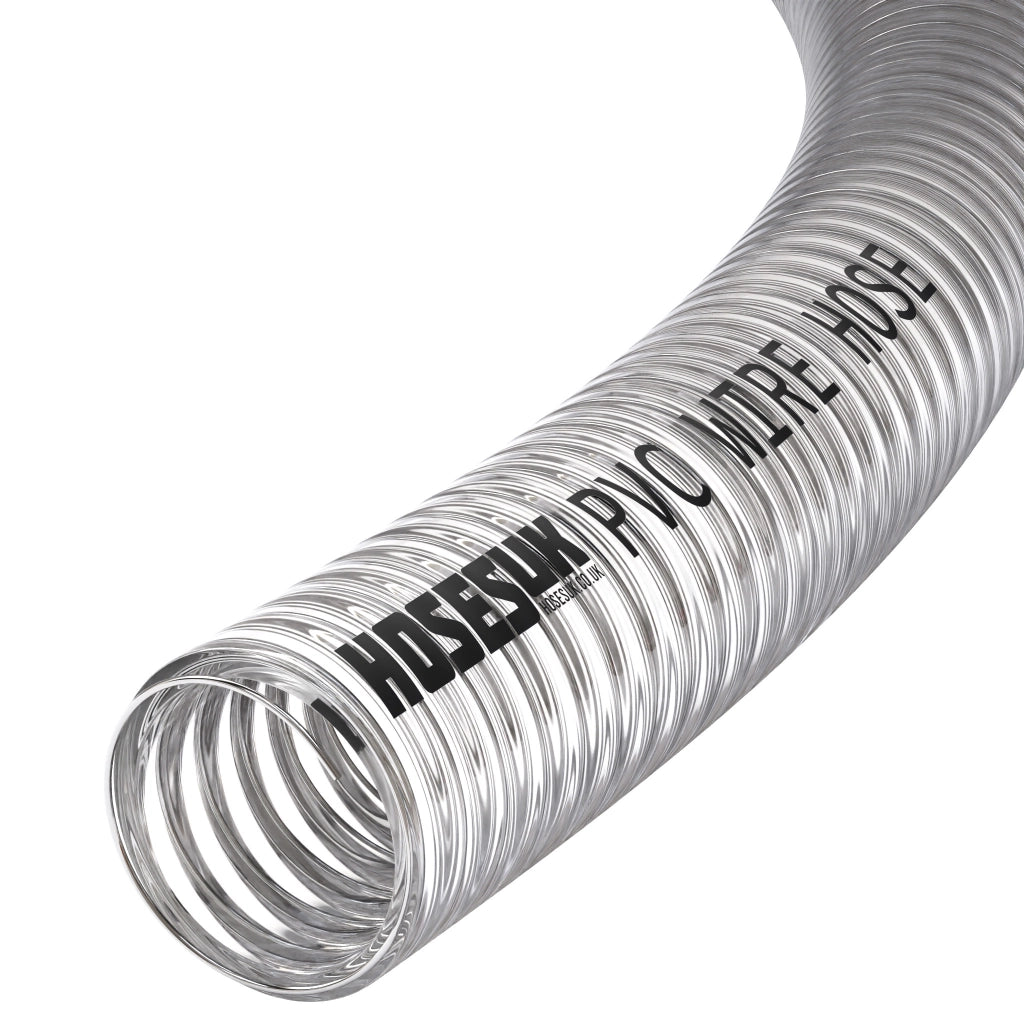

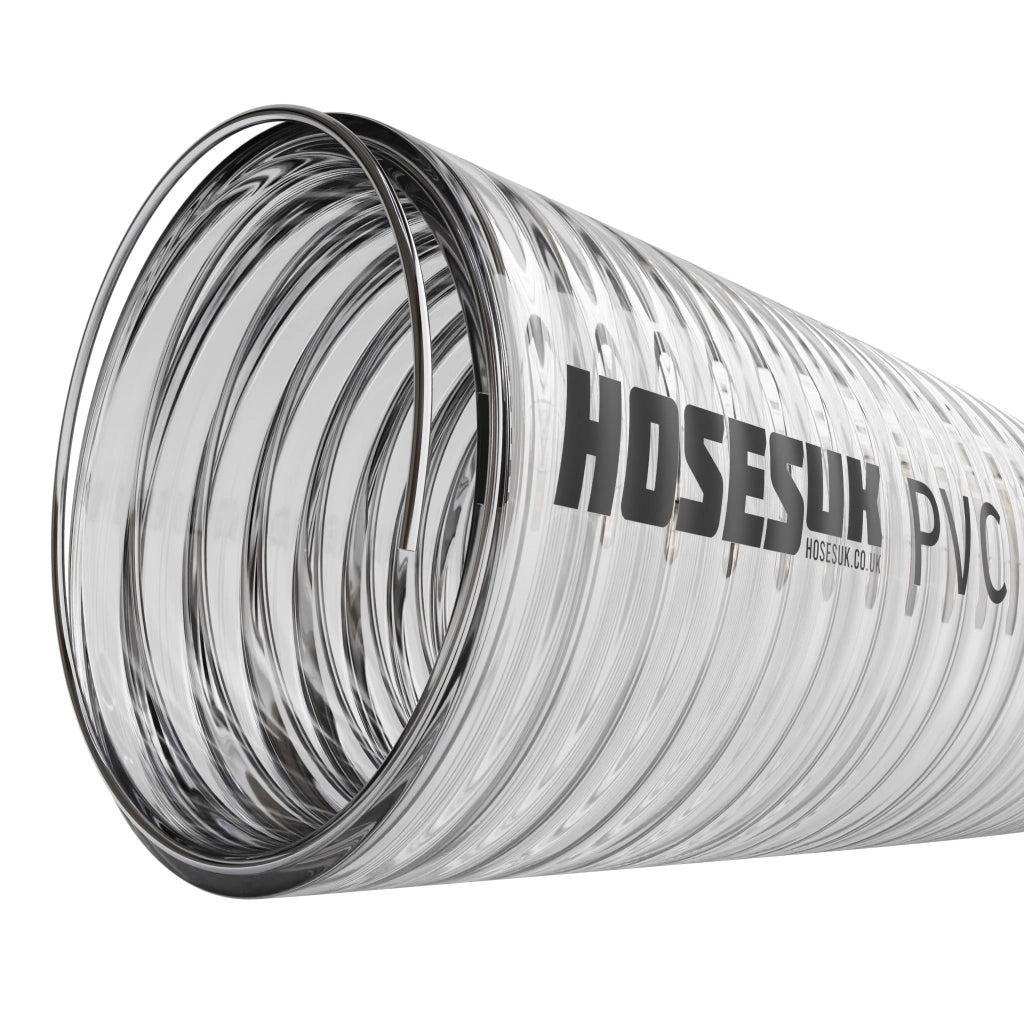

PVC Wire Reinforced Hose is a flexible, transparent hose designed for medium-duty suction and delivery in industrial, commercial, and agricultural environments. Constructed with a clear PVC inner and outer wall reinforced with a galvanized steel wire helix, the hose provides excellent crush resistance, vacuum stability, and flexibility under load. The smooth bore ensures efficient flow of liquids while maintaining clarity for easy visual monitoring of contents during transfer. With an operating temperature range of -10°C to +65°C (peak +70°C) and compliance to BS EN 10324-2005, this reinforced PVC suction hose delivers reliable performance for water, light chemicals, and general fluid handling applications requiring durability and visibility.

Key Features:

• Material: Clear PVC inner and outer layers with galvanized steel wire reinforcement.

• Internal Diameter Range: 10 mm to 51 mm.

• Wall Thickness: 3.0 mm to 3.5 mm depending on size.

• Working Pressure: 3 bar to 12 bar (varies by size).

• Burst Pressure: 9 bar to 36 bar (3:1 safety factor).

• Bending Radius: 102 mm (10 mm ID) to 348 mm (51 mm ID).

• Temperature Range: -10°C to +65°C; peak +70°C.

• Standard: BS EN 10324-2005 compliant.

PVC Wire Reinforced Hose combines the transparency and flexibility of PVC with the strength of a steel wire helix for added durability in suction and delivery tasks. The clear construction allows easy inspection of flow, making it suitable for applications where monitoring contents is critical. Reinforcement with galvanized steel wire provides structural integrity under negative pressure, preventing collapse during suction use, while also giving resistance to kinking under bending. The smooth bore reduces flow restriction and supports efficient pumping of liquids including water, light chemicals, and general-purpose fluids. With working pressures up to 12 bar and a safety-tested burst rating up to 36 bar, the hose offers dependable performance across varied conditions. Its temperature tolerance from -10°C to +65°C ensures adaptability across seasonal and operational changes, supporting long-term durability in industrial service.

Applications include suction and delivery of water, light chemical solutions, waste fluids, and other non-corrosive liquids in manufacturing, agricultural, and maintenance operations. The hose is widely used in construction dewatering, factory fluid transfer, and pneumatic vacuum lines where flexible handling and reinforced strength are essential. Distributed under the HosesUK brand, this PVC wire reinforced suction hose is a versatile choice for medium-duty industrial fluid handling systems.
