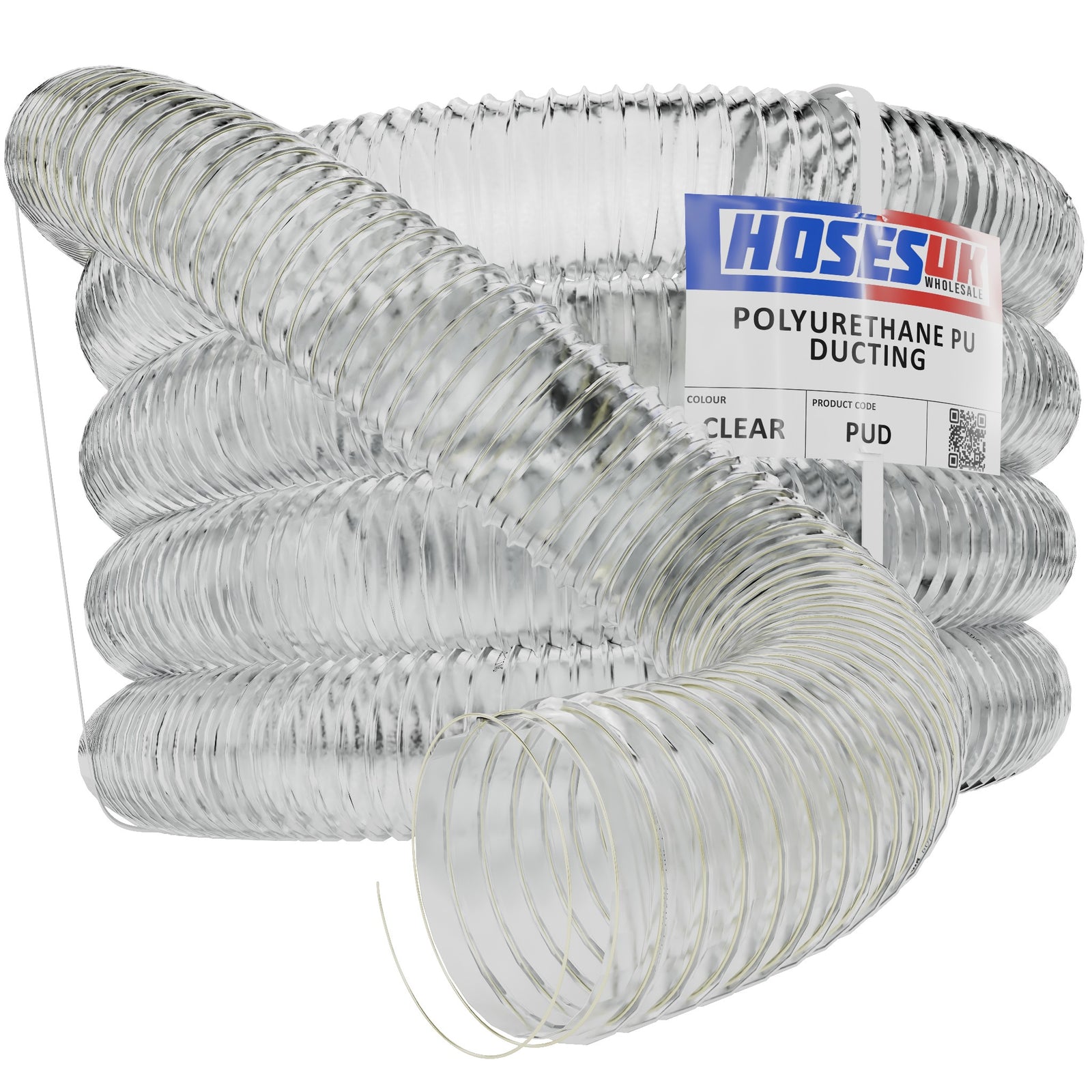

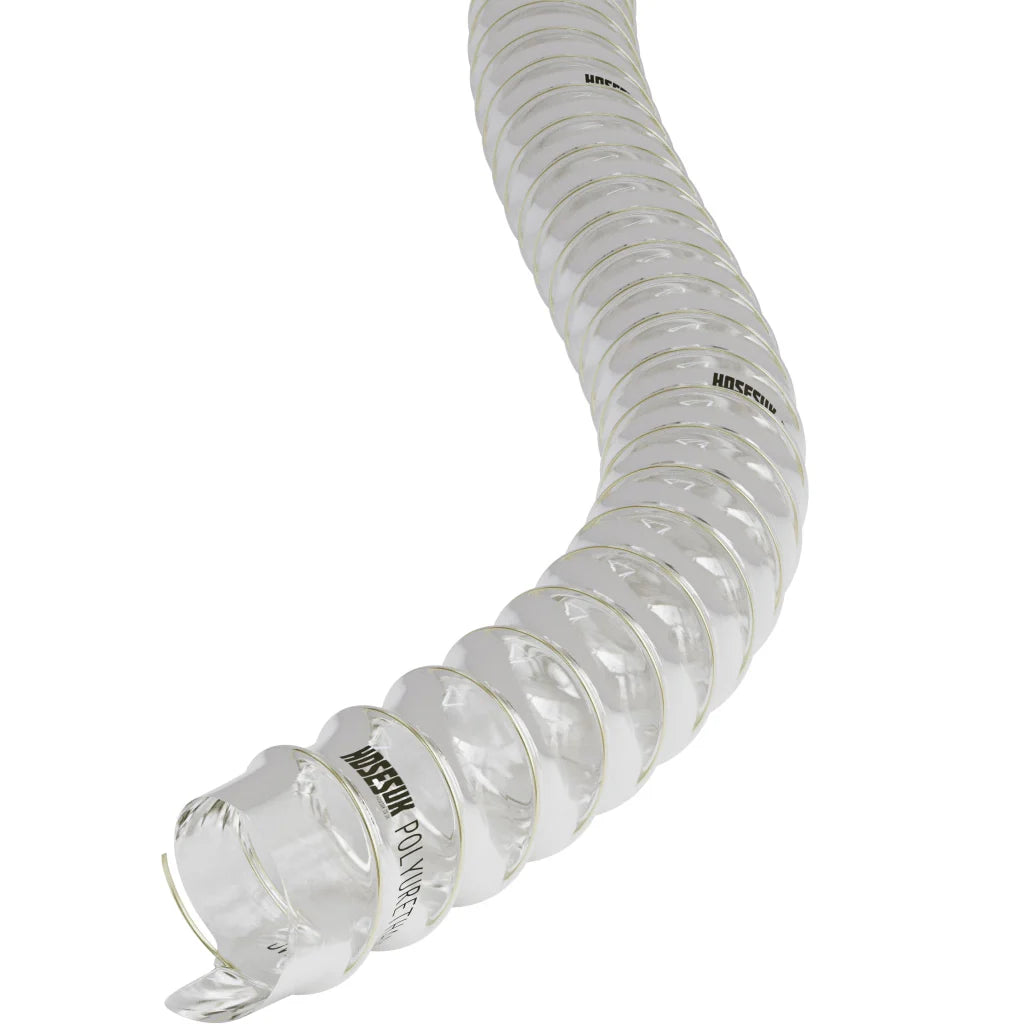

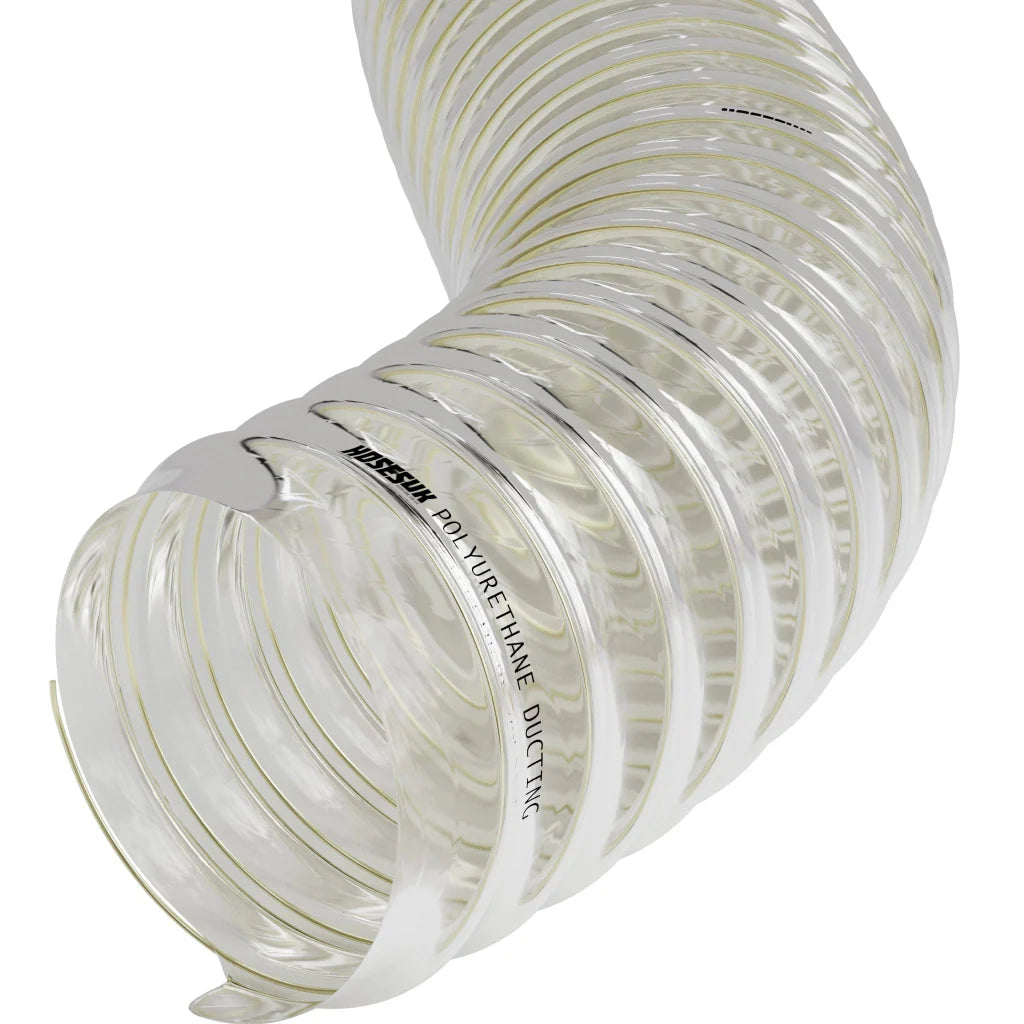

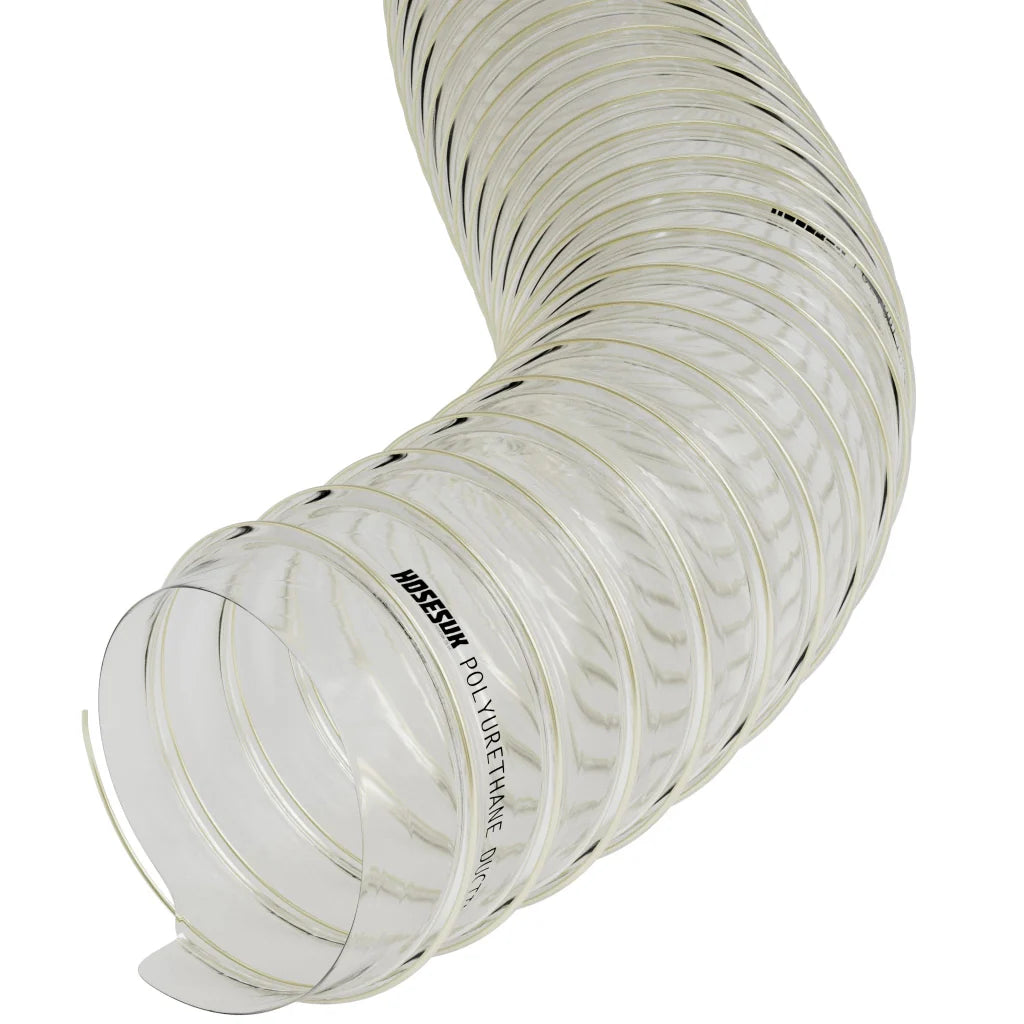

Polyurethane Ducting

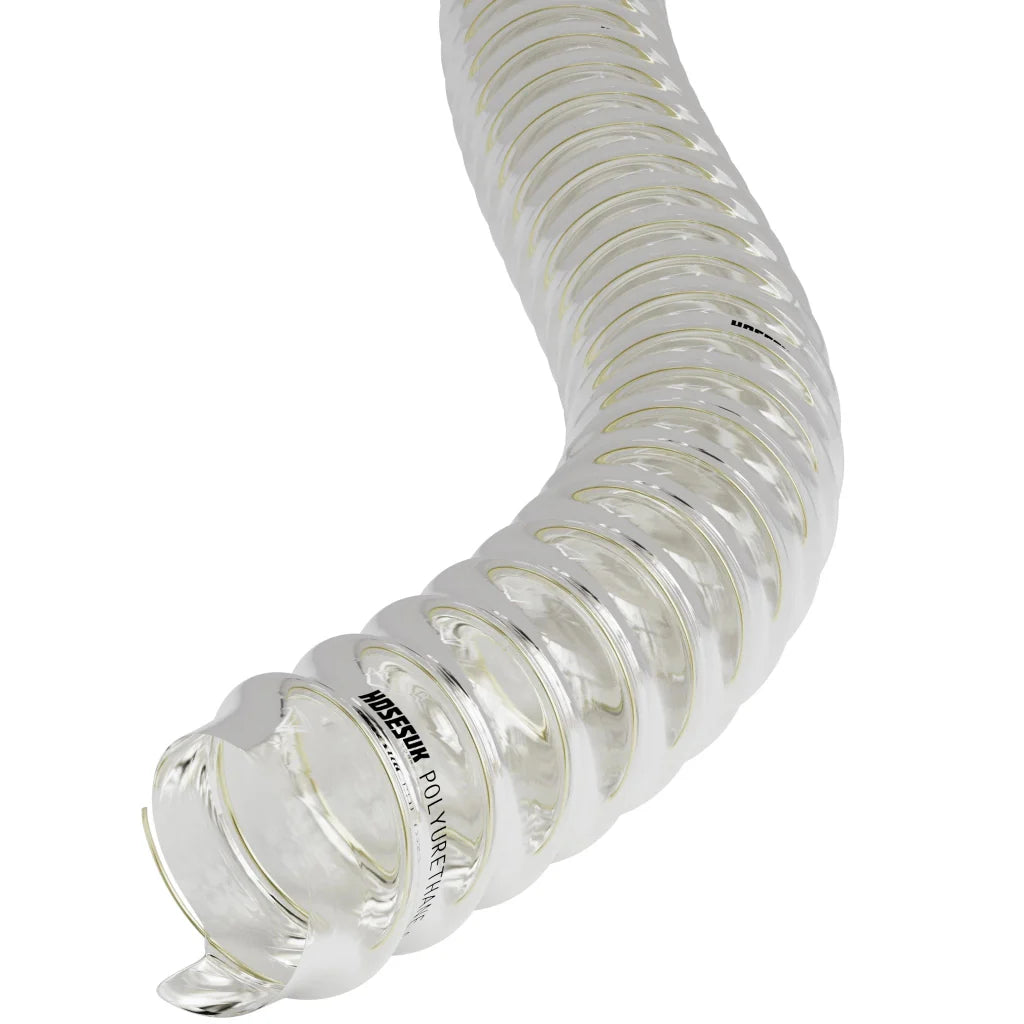

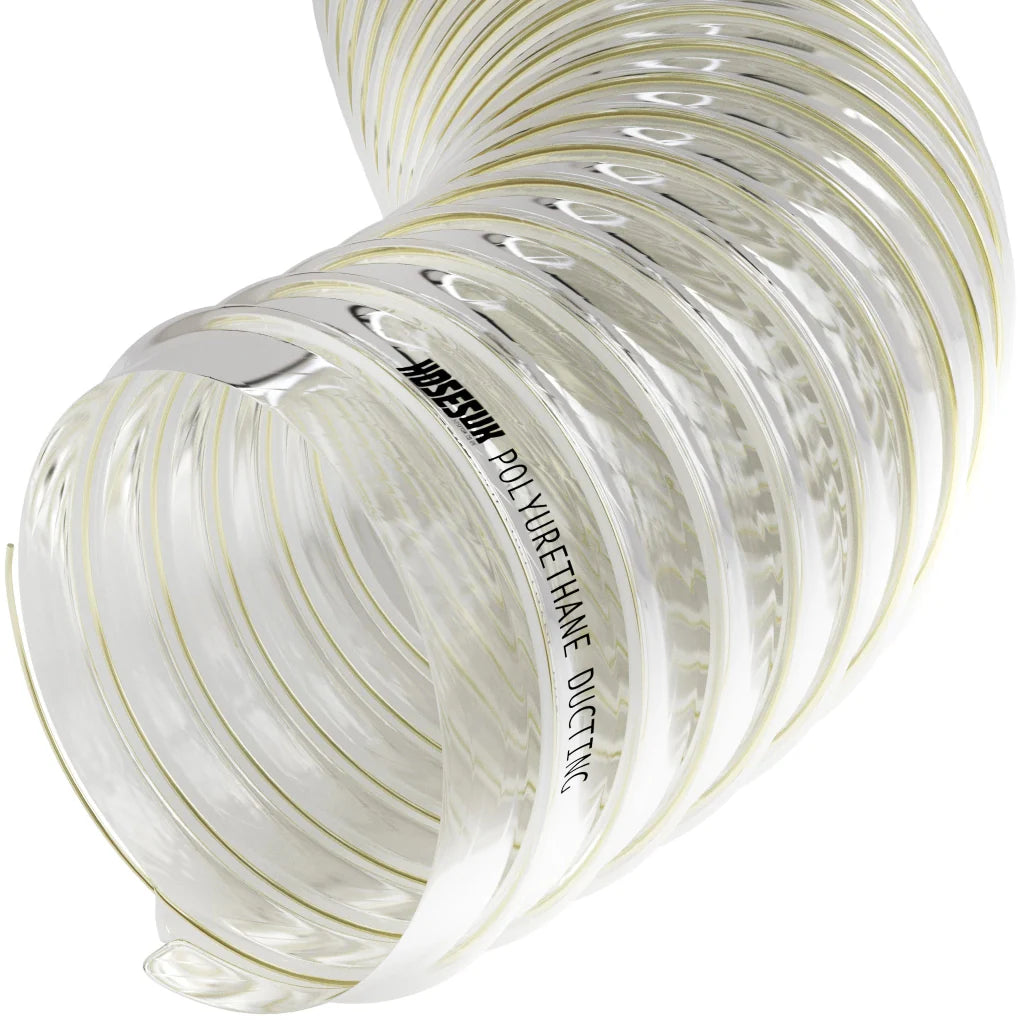

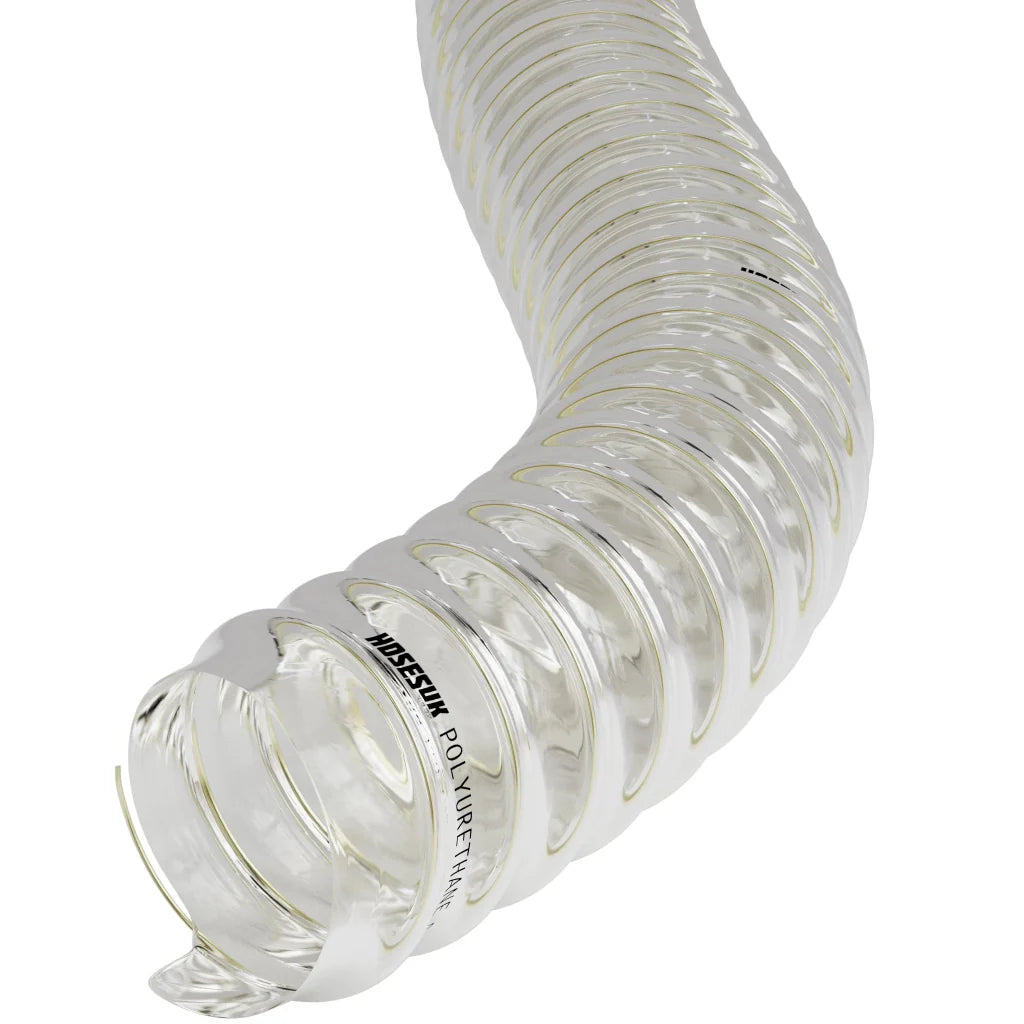

Polyurethane (PU) Ducting is a lightweight, highly flexible hose designed for the extraction and transfer of air, dust, and light materials in industrial and commercial environments. Manufactured by HosesUK, the ducting is made from semi-transparent polyurethane reinforced with a copper-plated left-hand spiral steel wire, providing anti-static properties and excellent resistance to abrasion. Built to TRBS2153 standards, it is suitable for use in explosive atmospheres and environments where electrostatic discharge must be prevented. With an operating temperature range of -40°C to +90°C and peak tolerance up to +125°C, this PU ducting is a versatile choice for handling airflow, dust extraction, and light particulate movement.

Key Features:

• Material: Semi-transparent polyurethane inner and outer wall.

• Reinforcement: Copper-plated left-hand spiral steel wire, anti-static.

• Internal Diameter Range: 50 mm to 200 mm.

• Wall Thickness: 0.4 mm.

• Negative Pressure: -0.20 bar (50 mm ID) to -0.04 bar (200 mm ID).

• Bending Radius: 32 mm (50 mm ID) to 165 mm (200 mm ID).

• Temperature Range: -40°C to +90°C; peak +125°C.

• Standard: TRBS2153 compliant (anti-static, explosion safety).

• Coil Lengths: 10 m and 20 m coils (size dependent).

• Colour: Semi-transparent finish.

The PU Ducting range combines excellent abrasion resistance with anti-static safety, making it ideal for dust and fume extraction systems. Its spiral steel wire helix prevents collapse under suction while providing flexibility for routing around machinery and confined spaces. The semi-transparent construction allows easy monitoring of blockages or material flow, improving maintenance efficiency. Designed for durability, it offers a long service life even in abrasive environments such as woodworking, plastics, and grain handling.

Applications include dust extraction, fume removal, air transfer, and light material handling in woodworking, plastics, agricultural, and industrial processing industries. Distributed under the HosesUK brand, Polyurethane Ducting provides a safe, reliable, and anti-static solution for industrial environments where abrasion resistance, flexibility, and compliance with TRBS2153 standards are essential.
